CRAFT · C → Rust

Budget model

Token-primary accounting

The rewrite ran under a hard cap of $120. Cost is token-primary: agent work is estimated from tokens at $0.02 per 1k tokens, then converted to USD. The live append-only ledger is rust/tools/spend-ledger.json (reporter: cost_report.py).

What costs money: Cursor agent coding turns (plan, port, fix, docs).
What is $0 tokens: GitHub Actions rust-e2e, islo job runs, snapshot bakes, sandboxes that only compile/test/record.
Hard stop: refuse entries once cumulative ≥ $120; no nested agents inside islo VMs (API unreachable / phantom key).
Execution model: Cursor writes Rust · islo runs deterministic gates · GH Actions is the public e2e mirror.

Trace narrative: COST_TRACE.md · board: EXECUTION.md.

Metric	Value
Cap	$120.00
Spent	$112.95 (94%)
Remaining	$7.05
Tokens (est.)	~3.20M
Pricing prior	$0.02 / 1k tokens
Gates	islo + GH = $0 agent tokens

Invoice

Workshop packing slip

Line items match the ledger waves. Status stamps the work as merged to zozo123/Craft master within budget.

INV-CRAFT-RUST-001

Bill to zozo123 / Craft fork
From C (GLFW/OpenGL + Python server) → Rust (wgpu/Tokio)
Status MERGED · master · PRs #1– #3 (+ Pages)

PAID IN BUDGET

Cap $120.00

$112.95

Remain $7.05 · 94% · ~3.20M tok

Wave	Amount
Planning + DAG + cost model	$8.00
Oracle harness (C goldens)	$1.50
Core port + finish (parity)	$5.00
Matrix + cube	$3.50
Mesh + craft-sim	$2.50
Physics	$3.00
DAG reopt	$0.50
wgpu walkable client	$9.00
craft-db + protocol	$5.00
craft-server (Tokio)	$5.00
Net e2e	$6.00
Ambient occlusion	$5.00
Online engine + 2-client e2e	$14.00
Product e2e (stream + HUD + peers)	$16.00
Clippy 1.97 fix	$1.20
Demo recorder + lavapipe CI	$16.00
PR#1 open / verify / merge	$1.50
Rust-first README	$3.00
README price tag + DAG	$1.50
GitHub Pages (invoice + explanations)	$2.50
SW factory lessons (islo + Incredibuild)	$1.50
islo snapshots + GH gates	$0.00
YC post + repo-composition honesty pass	$1.70
Total	$112.95

Terms: hard stop at $120 · no nested agents in islo VMs

Artifacts: docs/demo.{mp4,gif} · workflow rust-e2e + pages

Execution graph

Cleared DAG

The rewrite was sequenced as a software-factory DAG: each node had a concrete gate (unit/parity test, net e2e, islo bake, or GH Actions). Later nodes were deliberately re-ordered so a walkable / networked client shipped before polish (HUD/AO) — then AO, HUD, peers, demo, and docs closed the finish line.

flowchart LR
  A[A_oracle] --> B[B_matrix_cube]
  B --> C[C_mesh]
  C --> D[D_physics]
  D --> E[E_client]
  D --> H[H_db]
  D --> I[I_proto]
  H --> J[J_server]
  I --> J
  C --> G[G_AO]
  E --> G
  G --> S[S_full_stream]
  J --> S
  E --> F[F_HUD]
  S --> K[K_peers]
  F --> K
  K --> L[L_full_v2]
  L --> M[M_demo]
  M --> N[N_README]
  N --> P[P_pages]

Node	What it delivered	Gate
A oracle	C dumpers → goldens	`make -C oracle golden` + Rust parity
B–D	matrix, cube, mesh, physics	crate tests / mesh_e2e
E client	walkable wgpu window	`--smoke`
H–J	db, protocol, Tokio server	`e2e_net`
G AO	neighborhood occlusion	`ao_sum` + mesh-fanout
S full stream	chunk >2000 blocks	net-smoke / net-play
F / K	HUD, daylight, hotbar, peers	`--connect` + online_e2e
L full-v2	product mp e2e snapshot	islo `craft-mp-e2e`
M demo	lavapipe offscreen video	GH `demo` job + docs/
N / P	README + this Pages invoice	PR merge + pages workflow

Source of truth: rust/EXECUTION.md.

islo.dev sandboxes

Snapshots & jobs used

islo VMs were the deterministic factory floor: restore a snapshot, pull rust-rewrite, run gates, optionally bake the next snapshot. Agent tokens inside those VMs = 0. Nested Cursor agents were blocked (unreachable API / phantom key) — Cursor wrote code; islo only compiled, tested, and recorded.

Snapshot	Role	~Size
`craft-base-v1`	Oracle / base toolchain after C goldens job	238 MB
`craft-mesh-v1`	Mesh / core gate bake	261 MB
`craft-sim-v1`	craft-sim mesh stats path	277 MB
`craft-full-v0`	First full client+server vertical	1.0 GB
`craft-ao-v1`	AO mesh-grid fanout bake	1.0 GB
`craft-full-v1`	Multiplayer engine e2e	1.2 GB
`craft-full-v2`	Product finish (full stream + HUD + peers)	1.2 GB

Job / sandbox pattern	What it proved	Job path
`craft-oracle`	C oracle goldens on a fresh VM	jobs/craft-oracle
`craft-gate`	fmt / clippy / parity gate bake	jobs/craft-gate
`craft-mesh-fanout`	AO mesh-grid signals → `craft-ao-v1`	jobs/craft-mesh-fanout
`craft-mp-e2e`	2-client online_e2e + live net-play → `craft-full-v2`	jobs/craft-mp-e2e
`craft-demo-rec` (ad-hoc)	Debian12 + lavapipe + ffmpeg → demo.mp4/gif	islo use · software Vulkan
`craft-*-regress` (ad-hoc)	rust-1.97 fmt/clippy/test with goldens	islo use · craft-full-v1/v2

Software factory

How we ran it — what worked / less so

This rewrite was treated as a software factory: a DAG of small work units, each with a deterministic gate, a budget line, and a clear handoff. An agent (Cursor) writes code; the floor (islo.dev sandboxes + GitHub Actions) compiles, tests, bakes snapshots, and records demos at $0 agent tokens. Build-acceleration platforms like Incredibuild sit in the same factory mindset — distribute expensive compile/link work — and are linked here as part of that ecosystem; this particular run’s gates were carried by islo VMs + GH runners rather than an Incredibuild grid.

Role	Tool	In this project
Agent / writer	Cursor	Ports, fixes, docs, ledger — the only token-costing layer
Sandbox floor	islo.dev	Snapshot ladder `craft-base-v1`…`craft-full-v2`, job TOMLs, parallel signals, lavapipe demo record
Public e2e mirror	GitHub Actions	`rust-e2e` parity + demo artifact; `pages` deploy
Distributed builds	Incredibuild	Linked as SW-factory build acceleration; not wired into this Cargo/islo path

What worked

DAG + budget ledger — forced finish-line clarity; token-primary accounting kept gates free and spend visible.
islo snapshots — restore → pull → gate → bake meant fast, repeatable e2e without rebuilding the world each time.
Parallel sandboxes for signals — mesh fanout, mp-e2e, regress, net-play ran side by side; cheap retries.
C oracle goldens — bit-parity against the original sources caught port drift early.
Split of labor — Cursor writes; islo/GH only run. Nested agents inside VMs were correctly abandoned.

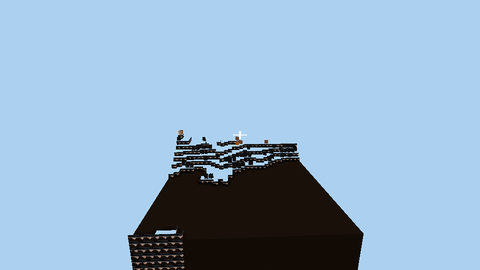

Headless lavapipe demo — proved the full stack without a display and gave a shareable artifact for Pages/README.
Reordering the DAG — ship walkable + net before perfect AO/HUD, then close polish — got to a playable product faster.

What worked less

Nested agents in islo — api.cursor.com unreachable from job sandboxes / phantom API key. Factory rule became: no agents in the VM.
Toolchain skew — rust-1.97 clippy caught unnecessary_unwrap that local 1.92 / GH stable missed; need the strictest gate in the loop.
Silent set -e failures — early sandbox scripts exited 101 with no logs; had to re-run with captured RCs.
Snapshot name collisions — rebaking craft-full-v2 failed until the stale snapshot was deleted.
Latent GPU uniform stride — interactive path never hit CI until offscreen demo; WGSL 112B vs Rust 96B.
Ad-hoc multi-client stress — 4× --net-play editing the same block hung; 2-client mp-e2e remained the trusted gate.
Incredibuild not on the critical path — Cargo builds here were local/islo/GH single-machine; an IncrediBuild grid would matter more for heavier CMake/MSVC or huge workspaces than this Rust crate set.

Bottom line: the SW factory worked when the graph was honest, gates were deterministic and free, and agents stayed on the write side of the line. Links: islo.dev · incredibuild.com · zozo123/Craft.

Public e2e

GitHub Actions

Workflow rust-e2e mirrors the factory gates on every push/PR:

parity: C oracle goldens → fmt → clippy -D warnings → cargo test --all → smoke → net e2e (online_e2e, e2e_net, --net-smoke, --net-play)
demo: install lavapipe + ffmpeg → headless --demo → upload craft-rust-demo artifact
pages: deploy this docs/ site to zozo123.github.io/Craft (pages.yml)

Links

zozo123 Craft rewrite

YC / Show HN post Copy-paste launch post + short social blurb islo.dev Sandbox floor — snapshots, jobs, $0-token gates Incredibuild Distributed build acceleration (SW-factory ecosystem) zozo123/Craft Fork master — Rust product + C appendix GitHub Pages This invoice + DAG + sandbox map PR #1 C → Rust rewrite + lavapipe demo PR #2 Rust-first README PR #3 Price tag + mermaid DAG on README fogleman/Craft Upstream original (C + Python) DEMO.md How the headless e2e video was recorded spend-ledger.json Append-only token-primary ledger

Credits

Attribution

Original Craft

Game design and C implementation by Michael Fogleman — github.com/fogleman/Craft. Terrain, protocol ideas, AO approach, and the playable feel remain his.

This rewrite

Rust port, Tokio server, wgpu client, islo factory DAG, lavapipe demo, and this Pages invoice: fork zozo123/Craft. Execution model: Cursor agent writes Rust; islo.dev sandboxes + GitHub Actions run deterministic e2e gates ($0 agent tokens).

Software factory

Deterministic gates on islo.dev sandboxes and GitHub Actions; agent writes stay in Cursor. Incredibuild is part of the same accelerated-build / factory ecosystem (not wired into this Cargo path). Lessons: SW factory — what worked / less so.

Stack

Rust · winit · wgpu / WGSL · Tokio · SQLite · Mesa lavapipe · ffmpeg · GitHub Actions · islo.dev snapshots · Incredibuild (ecosystem).
